Multi-Section
Noble N04
1280 Square Feet, 3 Bedrooms, 2 Bathrooms, Multi-Section
PLAN OVERVIEW
Built around everyday living.
Use the specs, floor plan images, interior gallery, and tour media below to compare this home against the layouts on your shortlist. Affordable Homes can help confirm current availability, options, setup details, and next steps.
Home Details
- Model Name
- Noble
- Model Number
- N04
- Collection
- Noble
- Series
- Noble
- Width Style
- Multi-Section
INCLUDED WITH THIS HOME
Standard Features
Construction
- “Noble” Exterior –”Half Peak” Dormer w/ Lap Accent (Most Models)
- ThermaWrap360 Thermal Package
- Recessed Frame
- 2 X 6 Floor Joists 16" OC 28’ (2x8 on 30’ wide)
- 19/32" T&G OSB Decking
- 2 X 6 Exterior Walls 16" OC
- 8'6" Sidewall Height w/ Flat Ceiling
- 30# Roof Load
- N3:12 Roof Pitch
- Double 2x4 Marriage Wall Construction
- Concealed Ridge Beam
- R-40 Ceiling Insulation
- R-33 Floor Insulation
- R-21 Wall Insulation
- Front - 6" Eaves (Nominal)
- Rear - 6" Eaves (Nominal)
- 6“ Leading & Tailing Eaves
- Detachable Hitch
Baths
- 1 pc Tub/Shower Combo- Both Baths
- Matte Black Towel & Tissue Holders-Both Baths
- 36" Lavy Height- Both Baths
- Elongated Toilet in Both Baths
- Bath Vent Fans w/ Lights in Both Baths
- Matte Black Framed Bath Vanity Mirrors – Both Baths
- Undermount China Sinks – Both Baths
- Matte Black Metal Single Lever Faucets– Both Baths
- “Thinscape” Countertop & Edging-Both Baths
- Ceramic Tile Backsplash-Both Baths
Exterior
- Frost-Free Faucet on Front Door Side
- Architectural Shingles
- Vertical Siding with Housewrap
- Exterior Window Trim
- Full End Wall Close-up
- 8" (nominal) Eave Fascia
- Wood Soffit & Facia
- Front Door - 36" Fiberglass w/ 6 Lite Craftsman
- Rear Door - 36" Fiberglass w/Peep
- Vinyl Low-E Insulated Windows
Interior
- Skip Troweled Ceiling Finish
- 1/2" T&T w/Square Corners T/O
- EGGSHELL Interior Paint Walls & Ceiling
- Shelf Over Washer / Dryer Area
- Wire Ventilated Closet Shelving
- 4046 Painted Cove Moulding
- 4” Shaker Base Moulding in Lino Areas
- 3.25” Shaker Door Moulding With 5.25” Cap
- 3.25” Shaker Window Moulding
- Wood Sill on Kitchen Window –Per Print
- Vinyl Flooring in Wet Areas
- Stain Resistant Carpet
- 3/8" 5# Rebond Pad
- Vinyl Flooring in Entry
- Floor Registers Only
- Matte Black 6” Pencil Pulls
- Brushed Wood Accent Area Island &DR
- 2 Panel White Int Doors
Kitchen
- Stainless Steel 19 CF Refrigerator
- Stainless Steel Deluxe Electric Range
- 30” Glass Rangehood
- Bank of Drawers in Kitchen
- “Thinscape” Countertop & Edging
- Tile Backsplash to the Bottom of Overheads
- Undermount Stainless Steel Kitchen Sink (Double Cell)
- Matte Black Single Lever Faucet w/ Pull Down Sprayer
- 42" Overhead Doors w/2 Adjustable Shelves
- Hardwood Cab Doors w/ Hardwood Stiles
- Cabinet Over Refrigerator
- Full Extension (Deluxe) Metal Drawer Guides
- Crown Moulding on Overhead Cabinets
- Tile Behind Range
- LED Can Lights in Dining Room
Electrical
- 200 AMP Panel Box
- Switch to Receptacle in Living Room
- Matte Black Bedroom Ceiling Lights
- Prep for Washer/Dryer-ELEC
- Toggle Light Switches
- Main Water Shut Off Valve
- Shut-off Valves Throughout
- 2 Black Porch Lights-Front/ 1 Jelly Jar- Rear
- Furnace - Standard Electric
- 30 Gallon Elec Water Heater
- Exterior GFI Recep
- Programmable Thermostat

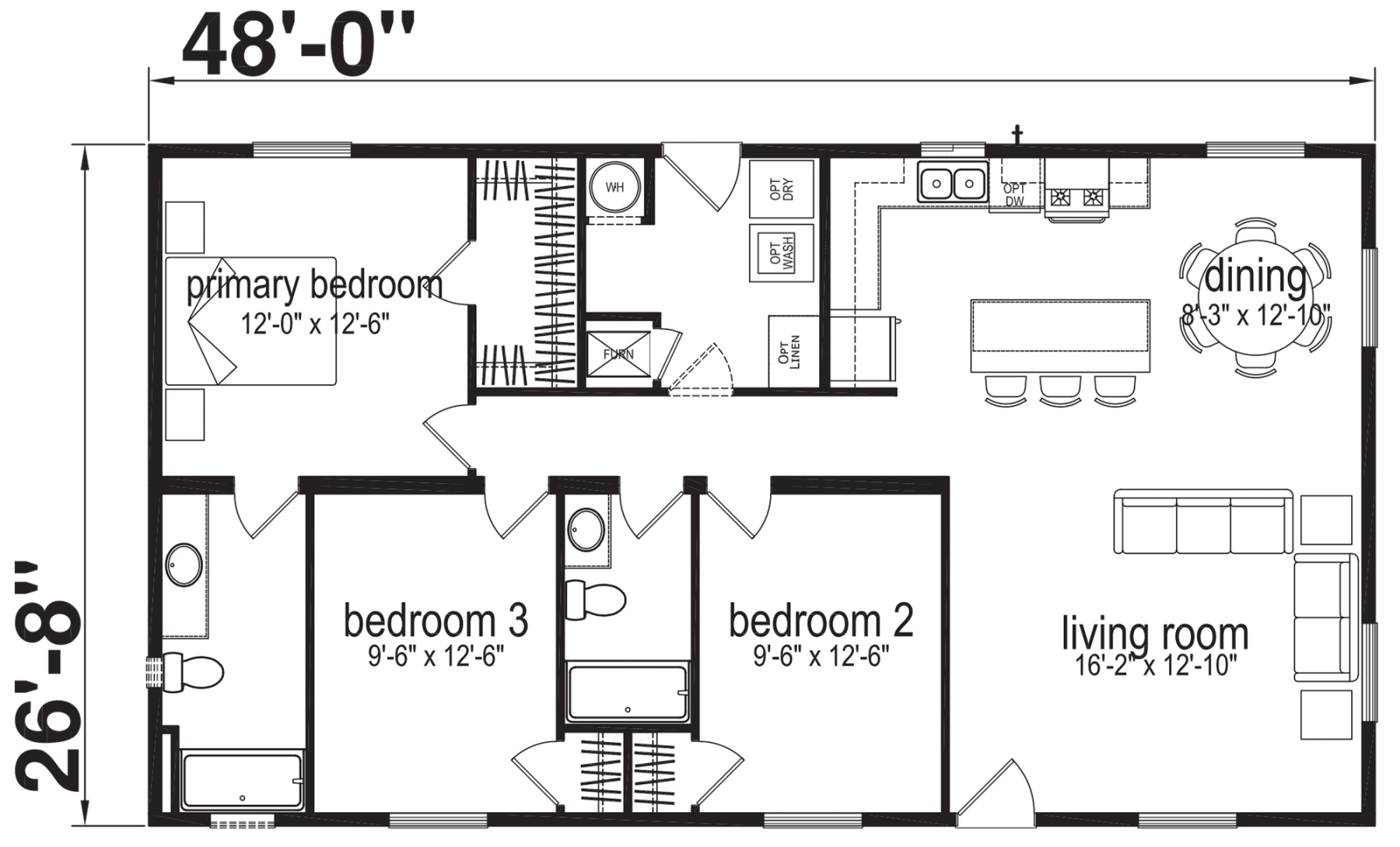

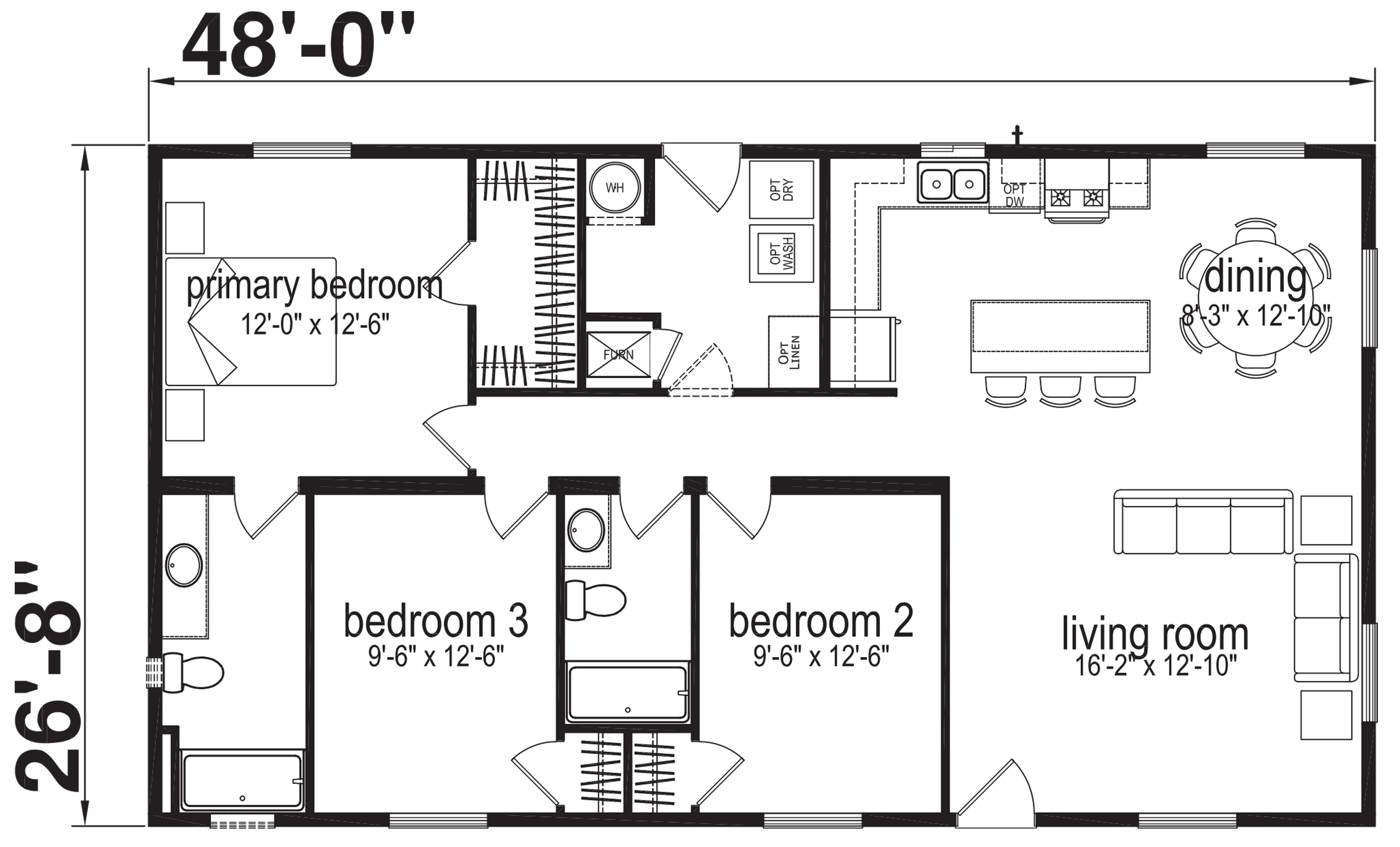

FLOOR PLAN
Layout Images
