Single Wide
Winchester 1432H11FL1
Explore the Winchester 1432H11FL1 floor plan from Affordable Homes, including photos, specs, layout images, and available tour media.
PLAN OVERVIEW
Built around everyday living.
Use the specs, floor plan images, interior gallery, and tour media below to compare this home against the layouts on your shortlist. Affordable Homes can help confirm current availability, options, setup details, and next steps.
Home Details
- Model Number
- 1432H11FL1
- Series
- Winchester SW Series
- Width Style
- Single Wide
- Width
- 13.3 ft.
- Length
- 32 ft.
INCLUDED WITH THIS HOME
Standard Features
Construction
- Exterior Shutters, Front Door Side and End
- Recessed Frame
- 2 X 6 Floor Joists 16" OC (2x8 on 15' Wide)
- 19/32" T&G OSB Decking
- 2 X 6 Exterior Walls 16" OC
- 8'6" Sidewall Height w/ Flat Ceiling
- 30# Roof Load
- N4:12 Roof Pitch
- R-28 Ceiling Insulation
- R-22 Floor Insulation
- R-19 Wall Insulation
- 6" Leading & Tailing Eaves
- Front-6" Eaves (Nominal)
- Rear - 6" Eaves (Nominal)
- Detachable Hitch
Bath(s)
- 2 pc Tub/Shower Combo in Both Baths
- Satin Nickel Towel & Tissue Holders in Both Baths
- 36" Lavy Height- Master Bath / 36" in Guest Bath
- Elongated Toilet in Both Baths
- Bath Vent Fans w/ Lights in Both Baths
- 24"x40" SE Bath Vanity Mirrors in Both Baths
- ABS Sinks & Dual Handle Faucets in Both Baths
- LED Can Light Above Sink in Both Baths
Exterior
- Architectural Shingles
- Vertical Siding with Housewrap
- Exterior Window Trim
- Vinyl Low-E Insulated Windows
- 8" (nominal) Eave Fascia
- Wood Soffit & Facia
- Front Door - 36" Fiberglass w/ Peep
- Rear Door - 36" Fiberglass w/Peep
- Hose Bib on Front Door Side
Interior
- Floor Registers Only
- Skip Troweled Ceiling Finish
- 1/2" T&T w/Square Corners T/O
- EGGSHELL Interior Paint Walls & Ceiling
- Cove Moulding Throughout (0093)
- Wire Ventilated Closet Shelving
- 356 Door Moulding
- 356 Window Moulding
- 356 Base Moulding in Lino Areas
- Vinyl Flooring in Wet Areas & Some Closets
- Stain-Resistant Carpet
- 3/8" 5# Rebond Pad
- Vinyl Flooring in Living Room
- 2-Panel White Interior Passage Doors
- Shelf Over Washer / Dryer Area
- LED Can Lights
Kitchen
- Stainless Steel 19 CF Refrigerator
- Stainless Steel Deluxe Electric Range
- Stand-Alone Rangehood
- Bank of Drawers in Kitchen
- Laminate Countertop & Edging
- Laminate Backsplash
- Crown Moulding on Kitchen Overheads
- Stainless Steel Kitchen Sink
- Single Lever Faucet w/Sprayer
- 42" Overhead Doors w/2 Adjustable Shelves
- Hardwood Cabinet Doors & Face Frame
- Shelf Over Refrigerator
- Full Extension (Deluxe) Drawer Guides
Electrical
- Switch to Receptacle in Living Room
- Satin Nickel Bedroom Ceiling Lights
- Prep for Washer/Dryer-ELEC
- Toggle Light Switches
- Main Water Shut Off Valve
- Shut-off Valves Throughout
- Porch Light- Front & Rear
- Furnace - Standard Electric
- 30 Gallon Elec Water Heater
- Exterior GFI Recep
- 200 Amp Panel Box
A NEW PERSPECTIVE
Step inside the layout.
Turn, zoom, and explore how the rooms connect in Winchester 1432H11FL1.
A little imagination. A whole new angle.
Explore an architectural model of this floor plan.
Winchester 1432H11FL1 / 3D layout
Drag to rotate · Pinch to zoom · Arrow keys to rotate
Illustrative model based on the floor plan. Dimensions and openings are approximate.
View original floor planAbout this model
Illustrative prototype manually traced from the attached manufacturer drawing. Footprint uses the drawing’s 32 ft by 13 ft 4 in dimensions (the listing rounds width to 13.3 ft). Wall centerlines and opening widths are estimated from image pixels. Wall height (8 ft), uniform wall thickness (4 in), door heights (6 ft 8 in), and window sill/heights are visualization assumptions, not verified construction measurements. No furniture, cabinetry, plumbing fixtures, roof, steps, or door swing leaves are modeled. Utility partitions are simplified. Not for construction or furniture-fit measurements.

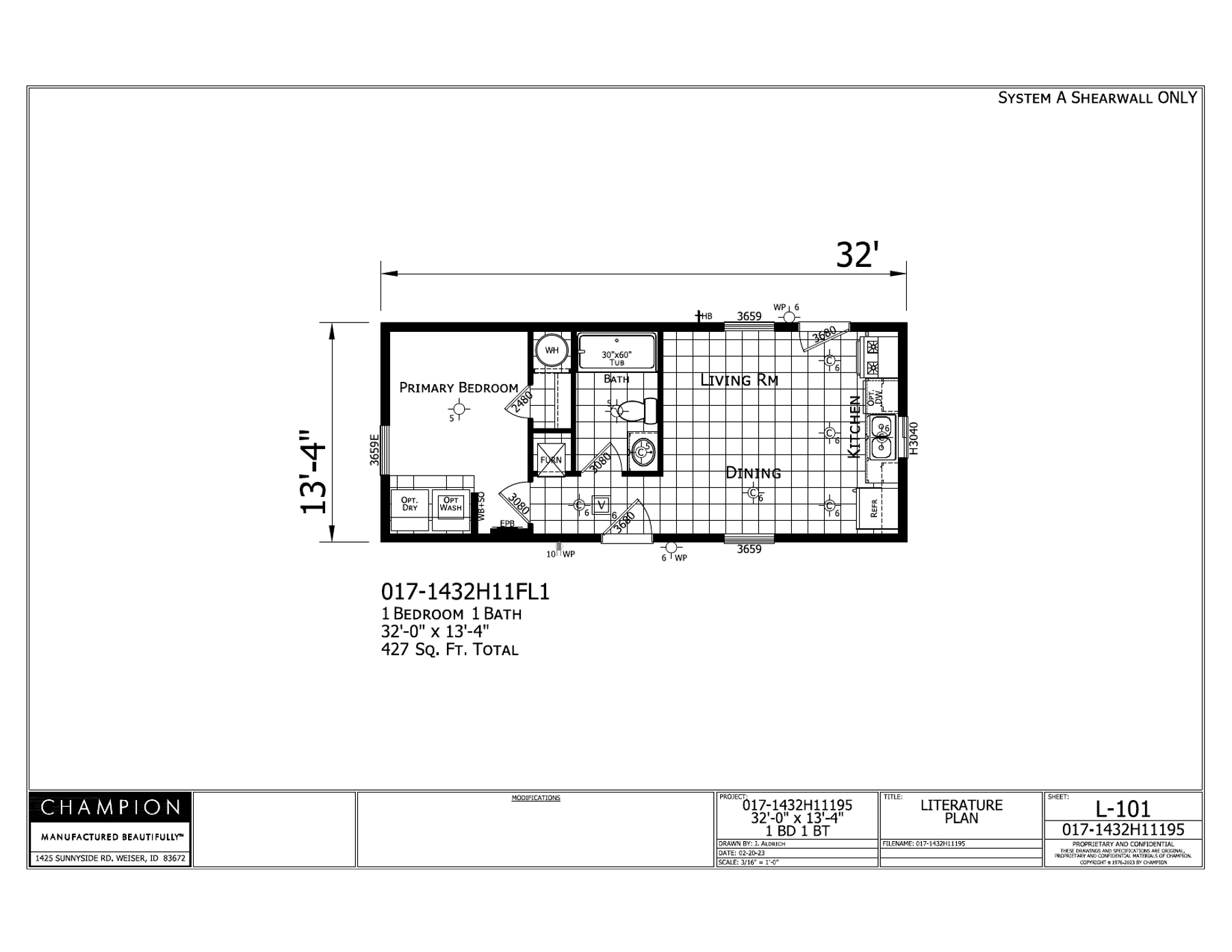

FLOOR PLAN
